第三章 Log

## 创建model下的文件夹
```shell
sam@sam-pn64:/diskA/CBD1800182_D107$ tree kochi-app -L 3
kochi-app
└── ccu
    └── model
        ├── execute-manager
        ├── execute-manager-design
        ├── log-daemon						#新增
        ├── log-daemon-design 				#新增
        ├── machine-design
        └── machine-integration
```
## 创建log-daemon和log-daemon-design工程

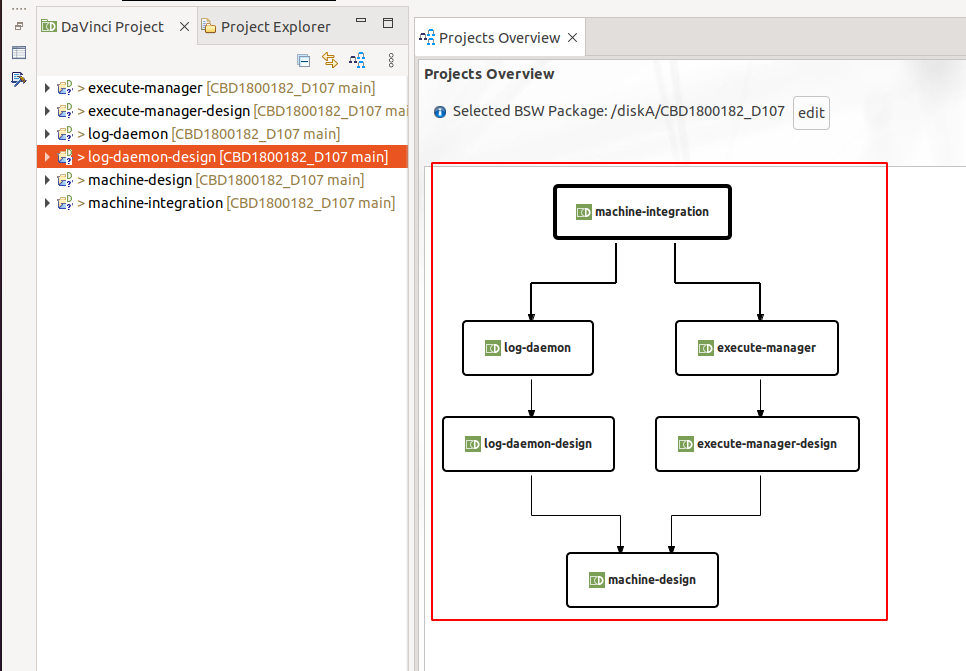

创建log-daemon和log-daemon-design工程，并配置关联关系

![](/media/202409/2024-09-12_104845_9537710.969320569579528.png)

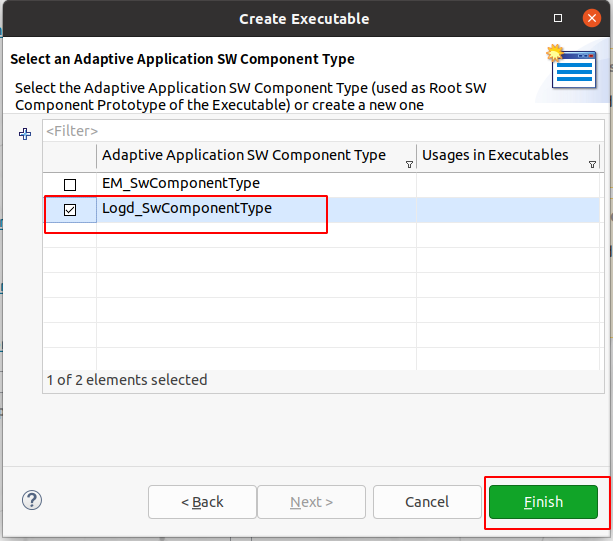

## 创建Executable

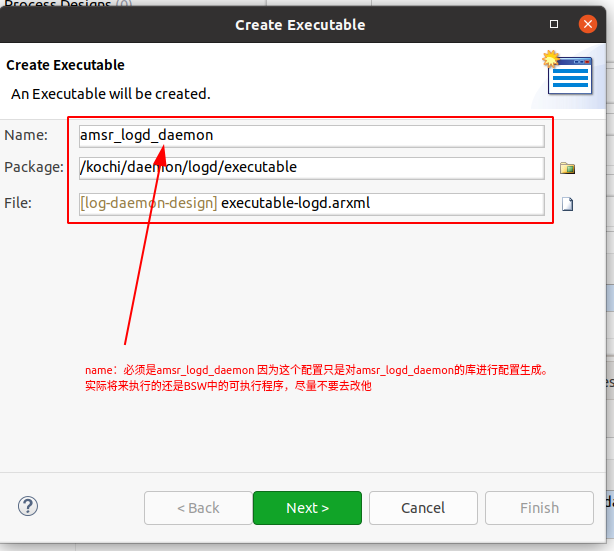

这里要记住啊，Name一定要写`amsr_logd_daemon`

![](/media/202409/2024-09-18_141439_6404560.4511988254622369.png)

![](/media/202409/2024-09-12_105504_9218580.7585075648391895.png)

![](/media/202409/2024-09-12_105534_6332490.18728586623144106.png)

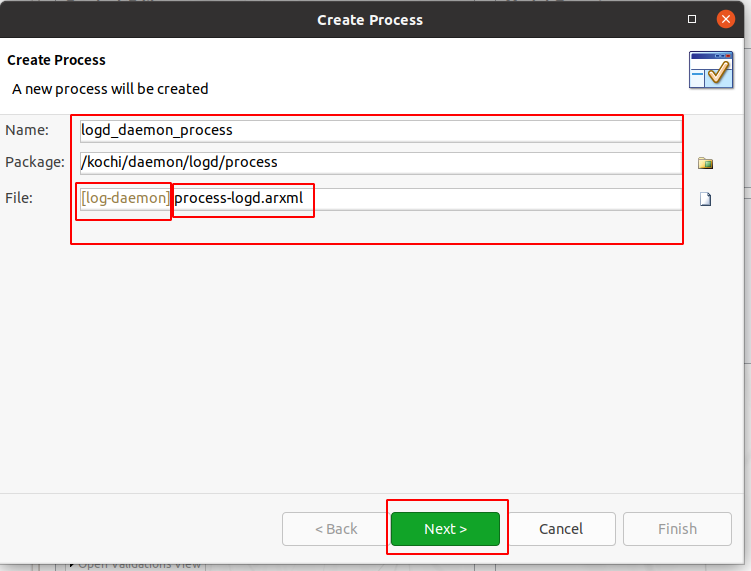

## 创建Process

![](/media/202409/2024-09-12_110031_6214450.49864979965198175.png)

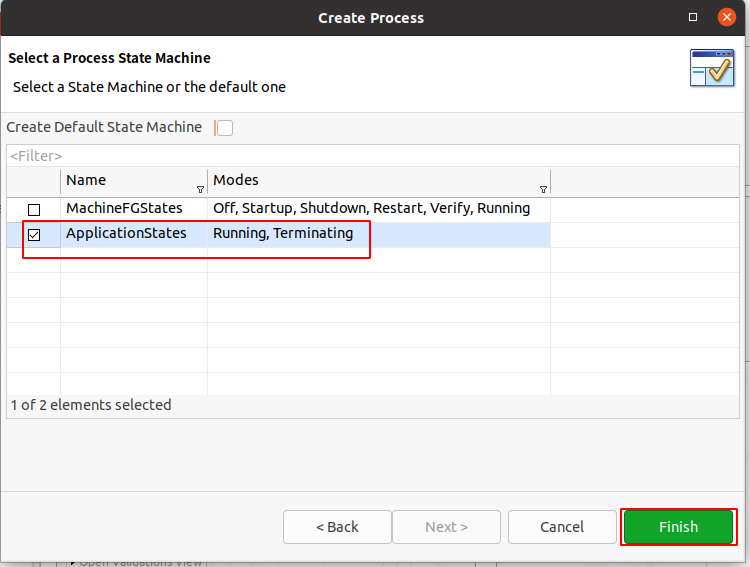

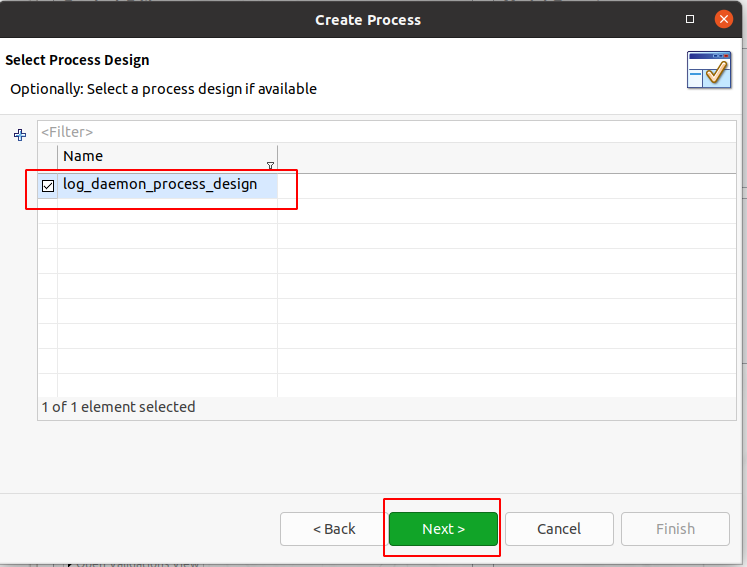

## 创建 ProcessDesign

![](/media/202409/2024-09-12_110227_2381990.216836430250119.png)

![](/media/202409/2024-09-12_110357_9802310.4345435605156036.png)

![](/media/202409/2024-09-12_110506_7456530.6538356679339007.png)

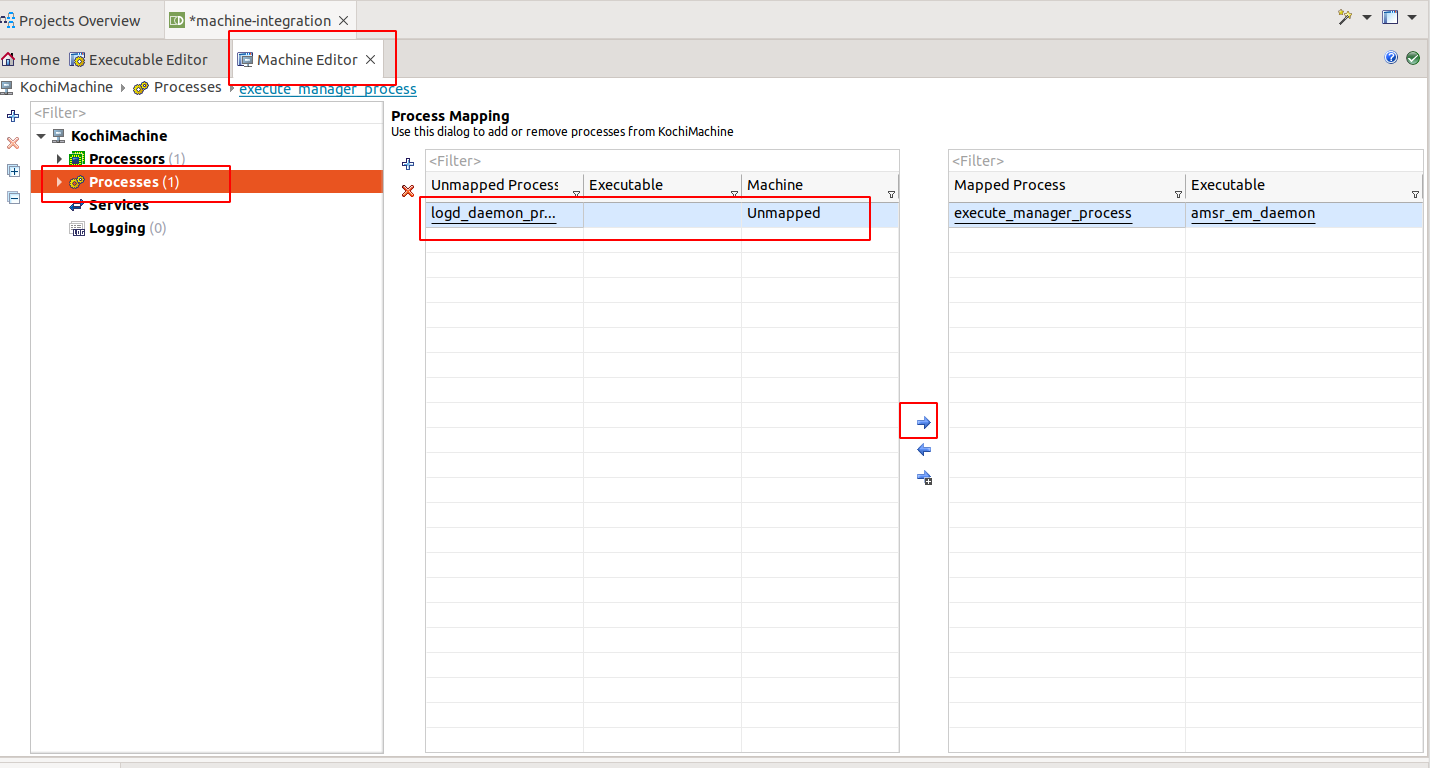

## Machine Editor

![](/media/202409/2024-09-12_110639_5765370.6093703896293486.png)

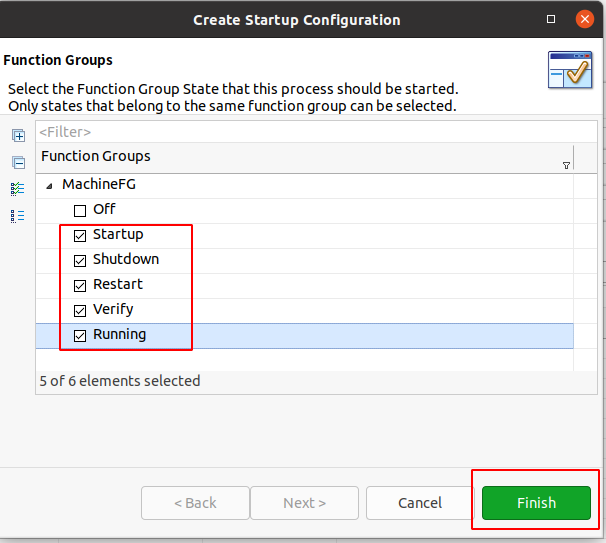

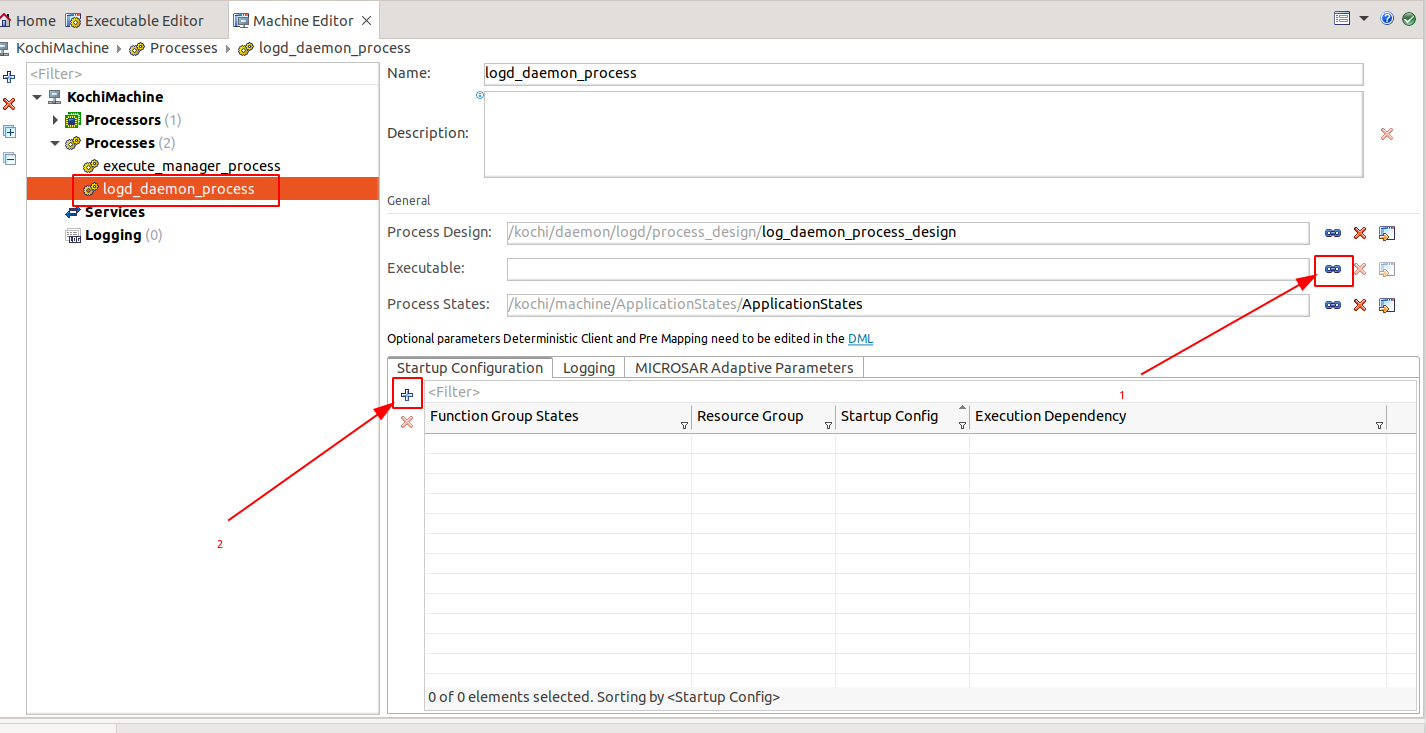

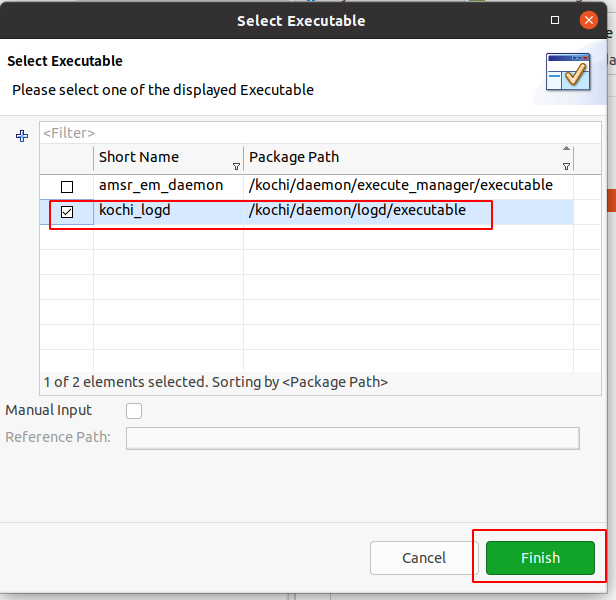

添加Executable（上面创建的Executable）关联和Startup Configuration
![](/media/202409/2024-09-12_110910_0093600.5700647911597495.png)

![](/media/202409/2024-09-12_111019_3320270.2643586827049428.png)

![](/media/202409/2024-09-12_111130_1378910.7516062320693464.png)

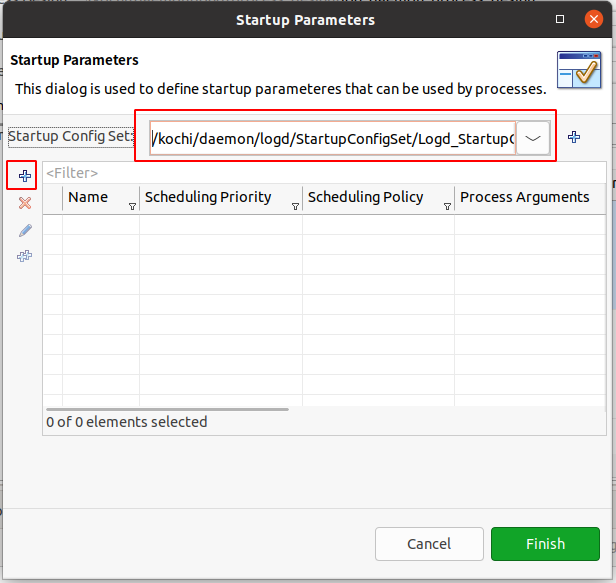

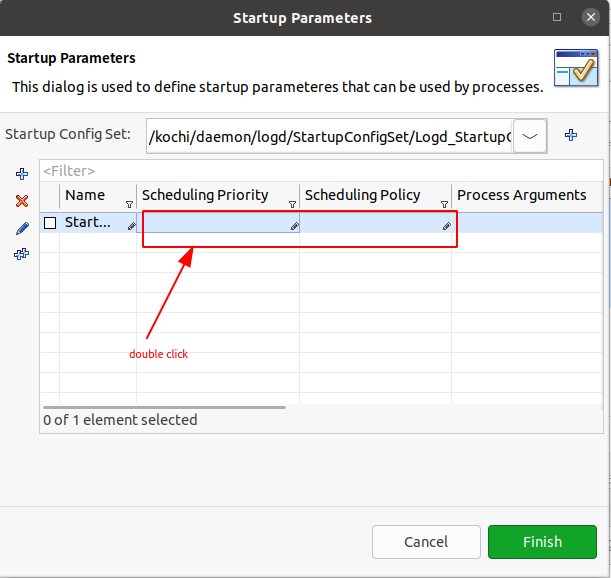

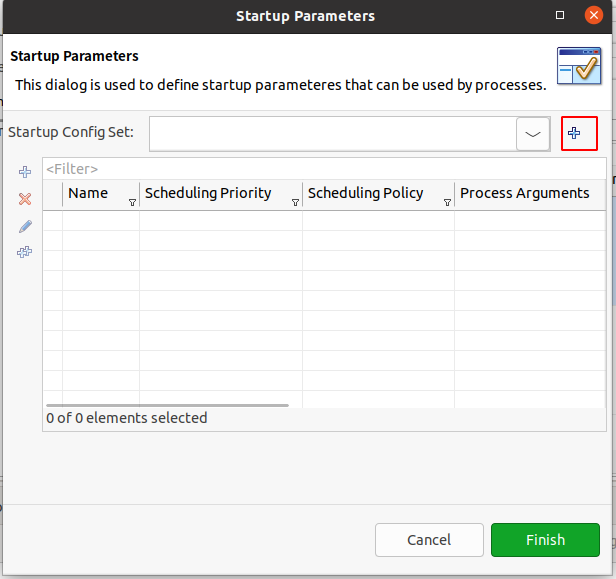

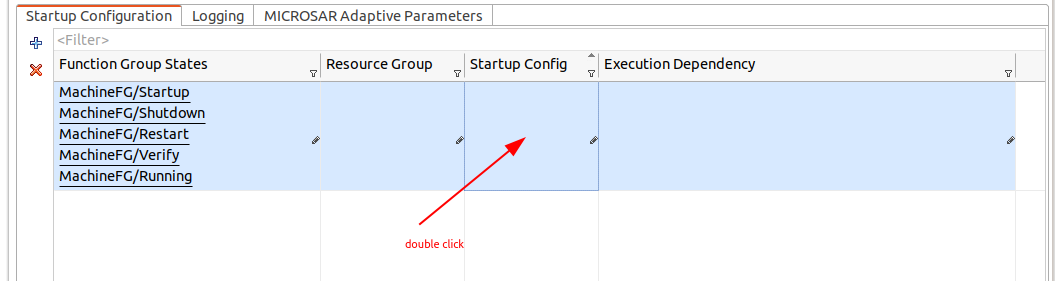

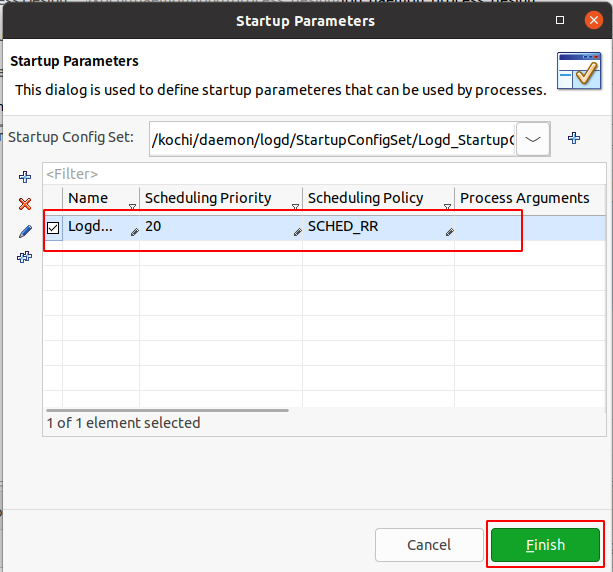

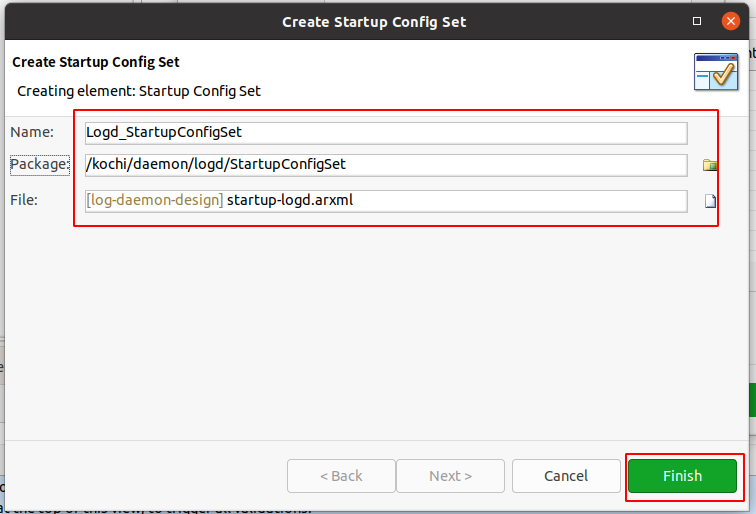

配置Startup

![](/media/202409/2024-09-12_111217_1684640.8344073551685572.png)

![](/media/202409/2024-09-12_111312_4517890.990403527609545.png)

![](/media/202409/2024-09-12_111728_8146590.7901836321623146.png)

![](/media/202409/2024-09-12_111803_9797510.2114210545835279.png)

![](/media/202409/2024-09-12_111852_8922510.8089625124234934.png)

![](/media/202409/2024-09-12_112255_8679630.4174497883363282.png)

![](/media/202409/2024-09-12_112328_5954190.38718397013136907.png)

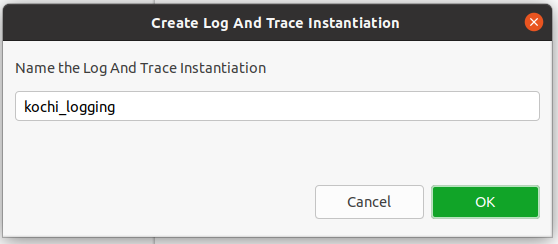

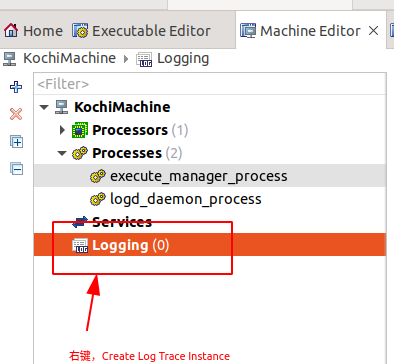

创建LogTraceInstance

![](/media/202409/2024-09-12_114107_7249480.16921029754962547.png)

![](/media/202409/2024-09-12_113952_7654300.18434578720248518.png)

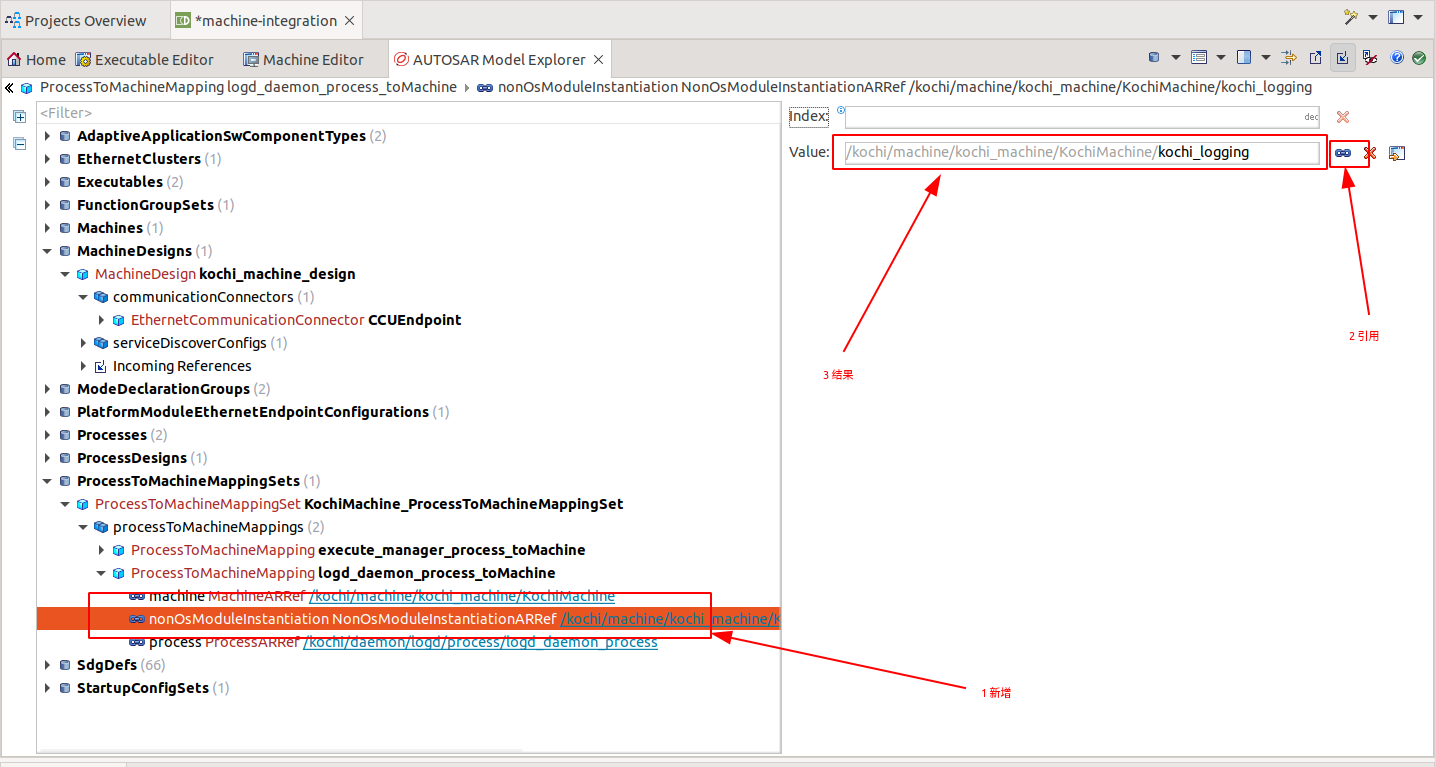

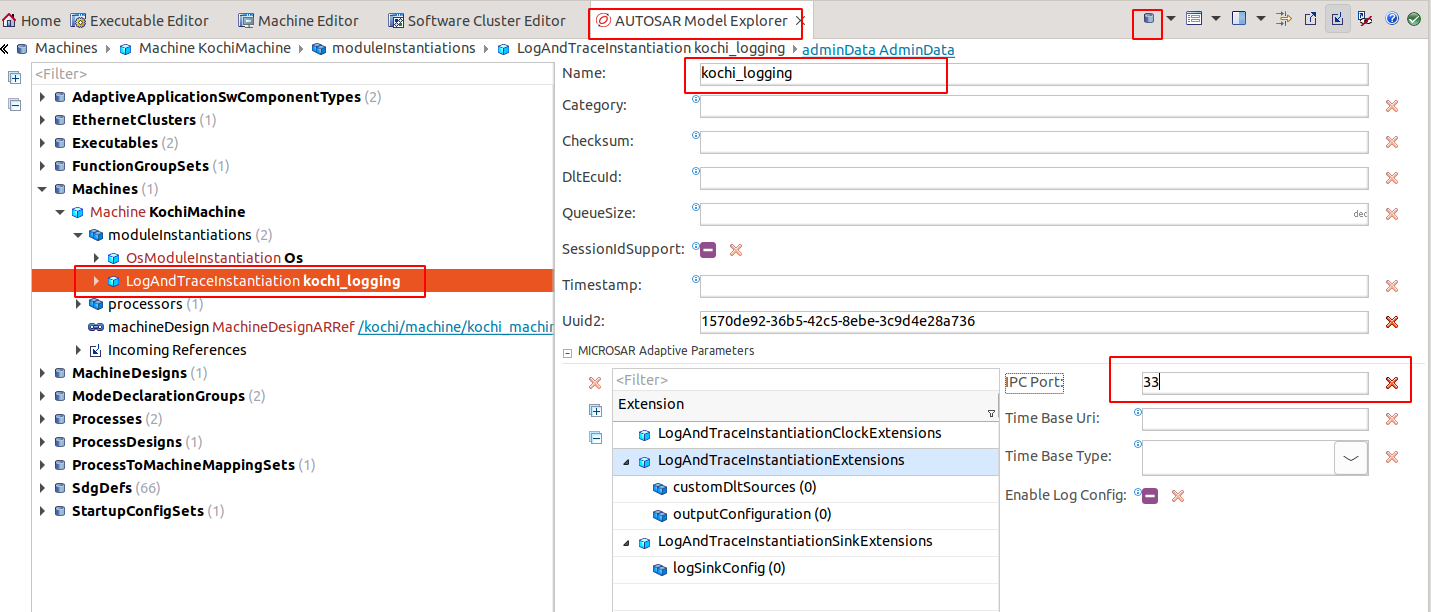

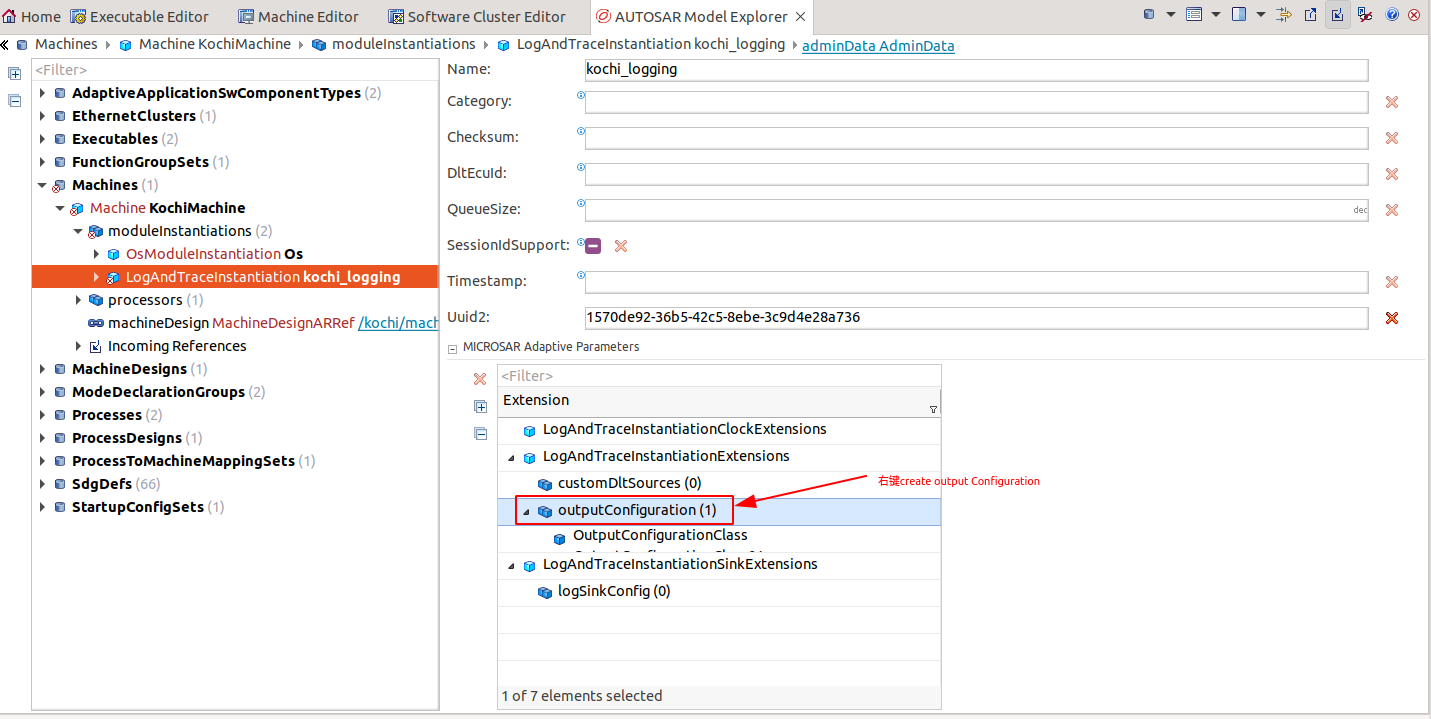

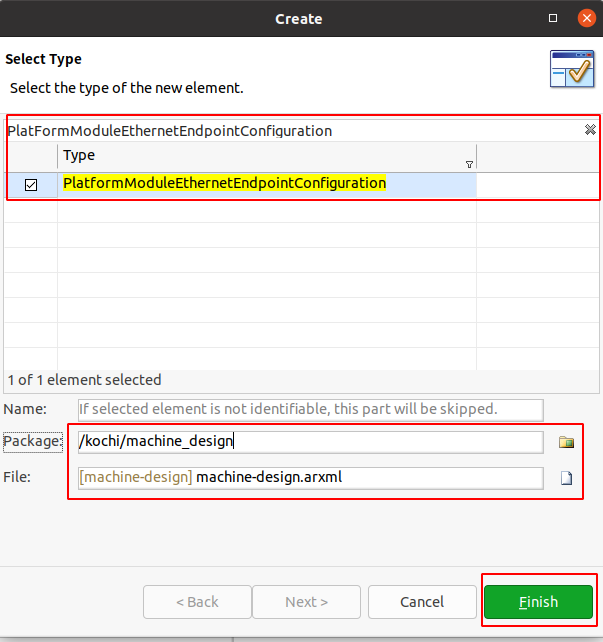

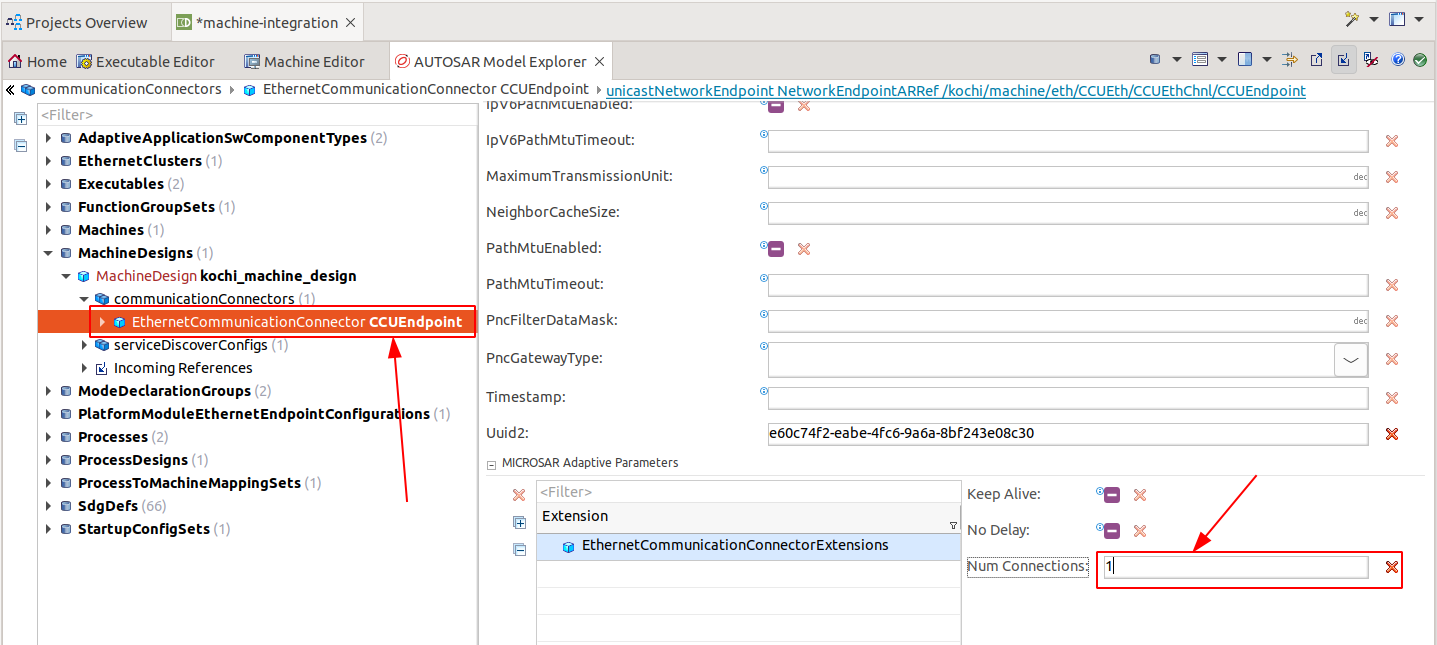

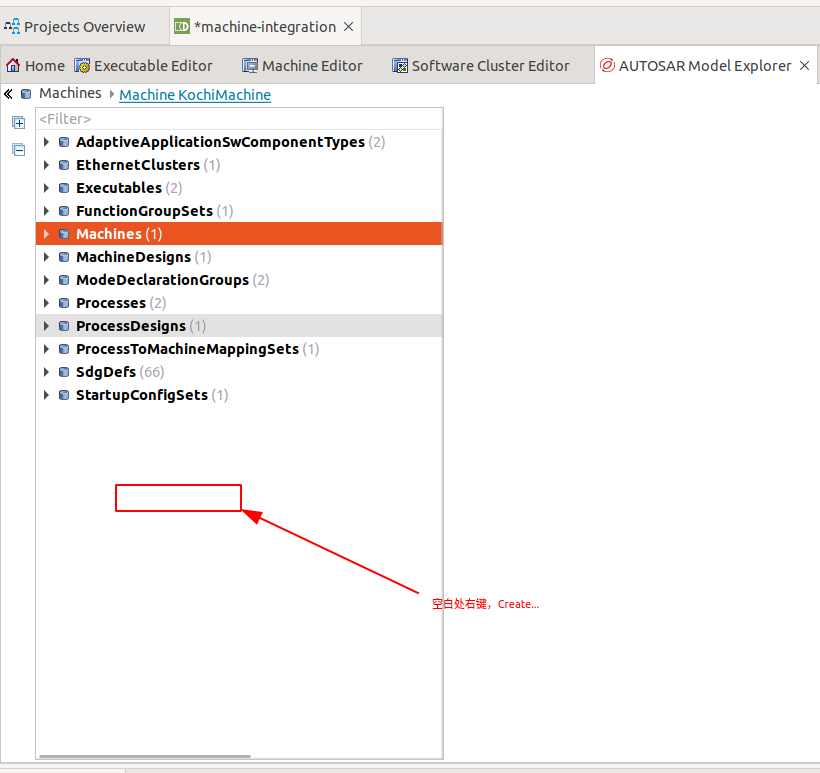

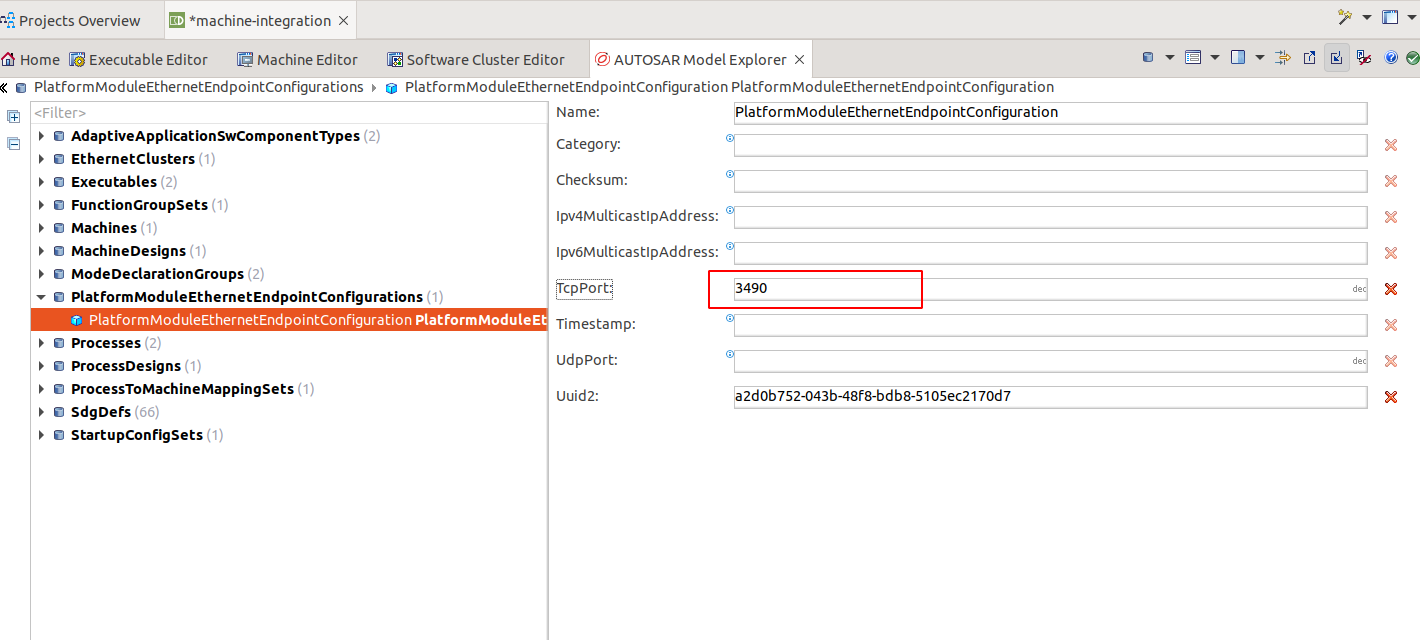

配置kochi_logging

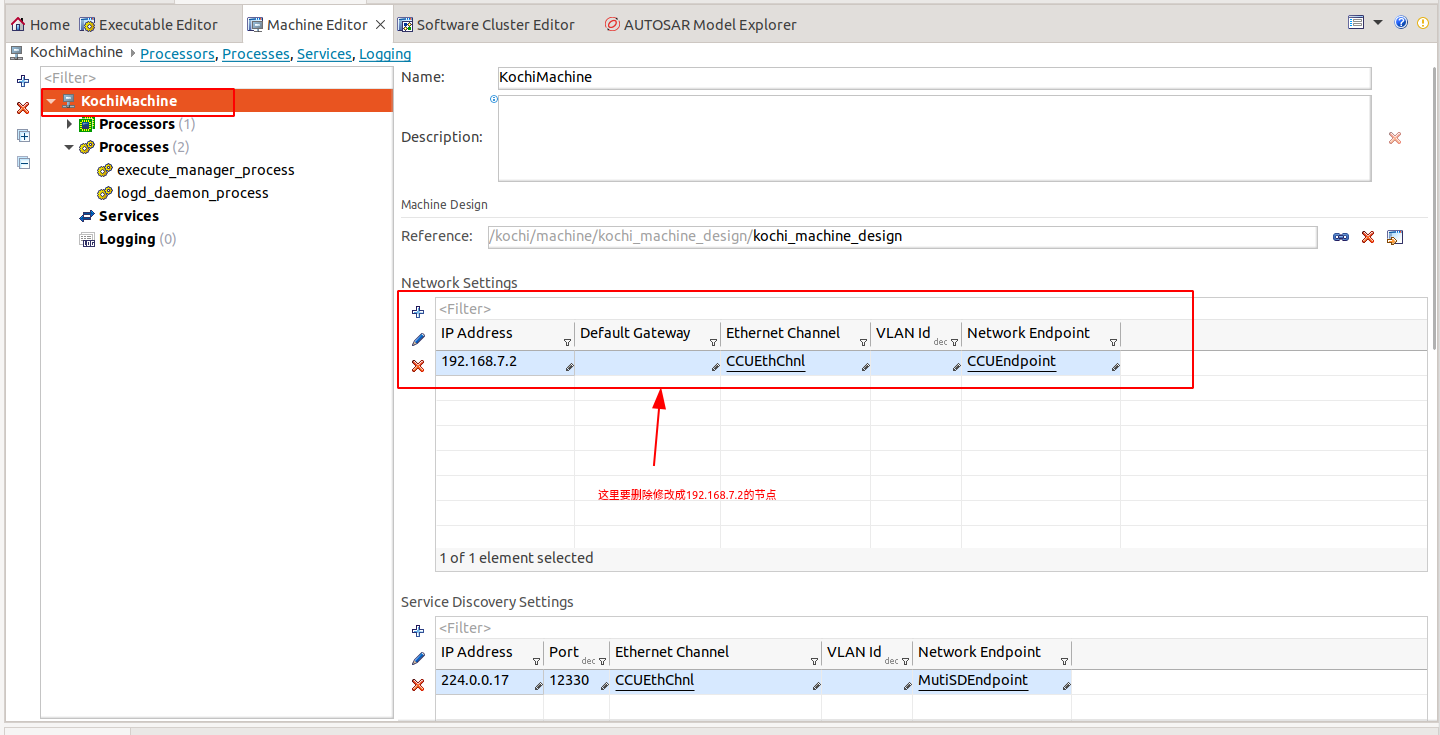

配置kochi_logging前需要对网络做一些配置

![](/media/202409/2024-09-12_115630_8475470.6894760240478881.png)

![](/media/202409/2024-09-12_114912_3401500.24470452872629045.png)

![](/media/202409/2024-09-12_115050_1514220.81634610287844.png)

![](/media/202409/2024-09-12_115129_6106380.10274959229408787.png)

![](/media/202409/2024-09-12_114358_8194060.3654386227683274.png)

![](/media/202409/2024-09-12_132149_2322200.5699188606858362.png)

![](/media/202409/2024-09-12_133020_5137800.012993077909438822.png)

![](/media/202409/2024-09-12_114628_3090180.06340585577214974.png)

![](/media/202409/2024-09-12_133531_4026260.2405361617548757.png)

以上一部分配置相当繁琐，请不要配错了。

## 设置Log Channel

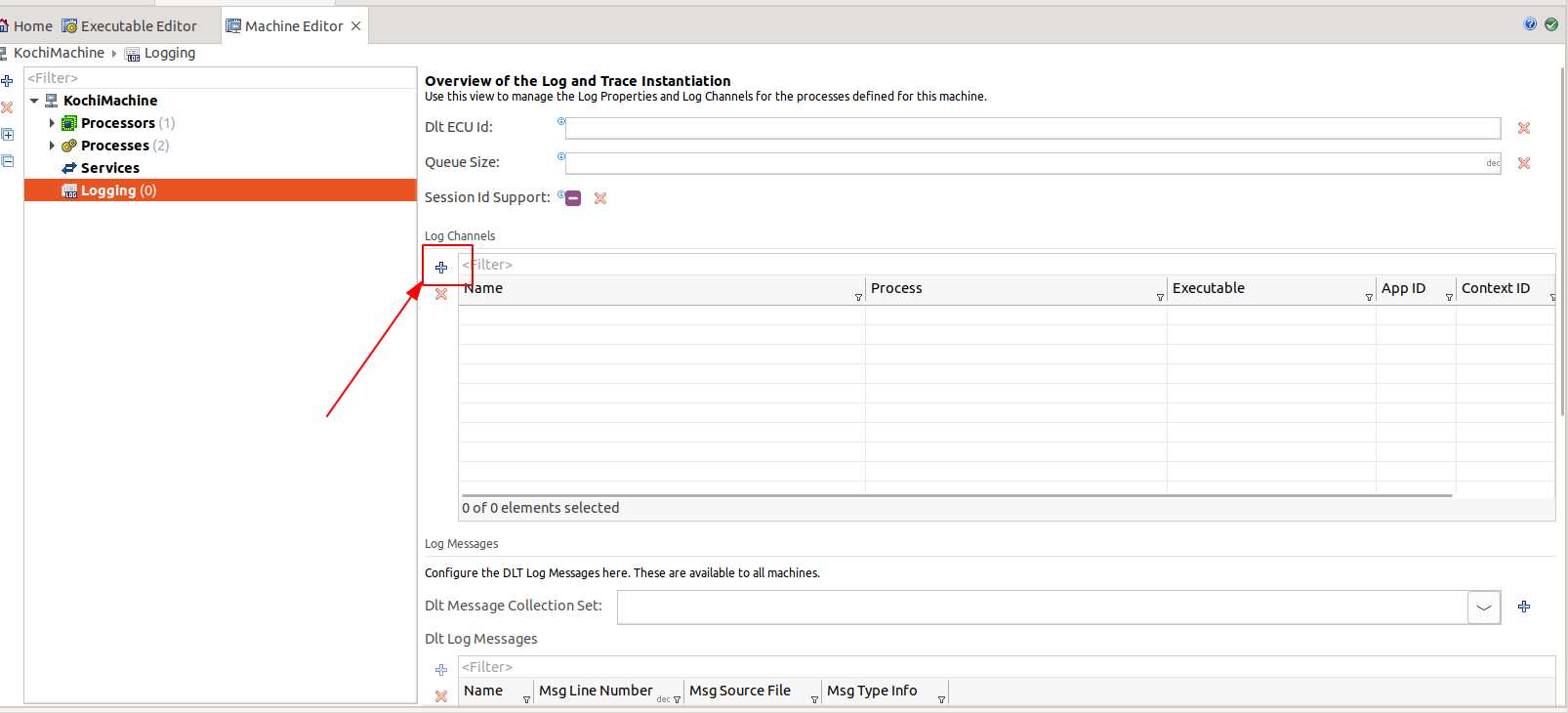

### 为Execute Manager添加Log Channel
因为我们之前做EM的时候，并没有配置Log通道，所以在这里配置

![](/media/202409/2024-09-12_133714_3765720.4034653381978811.png)

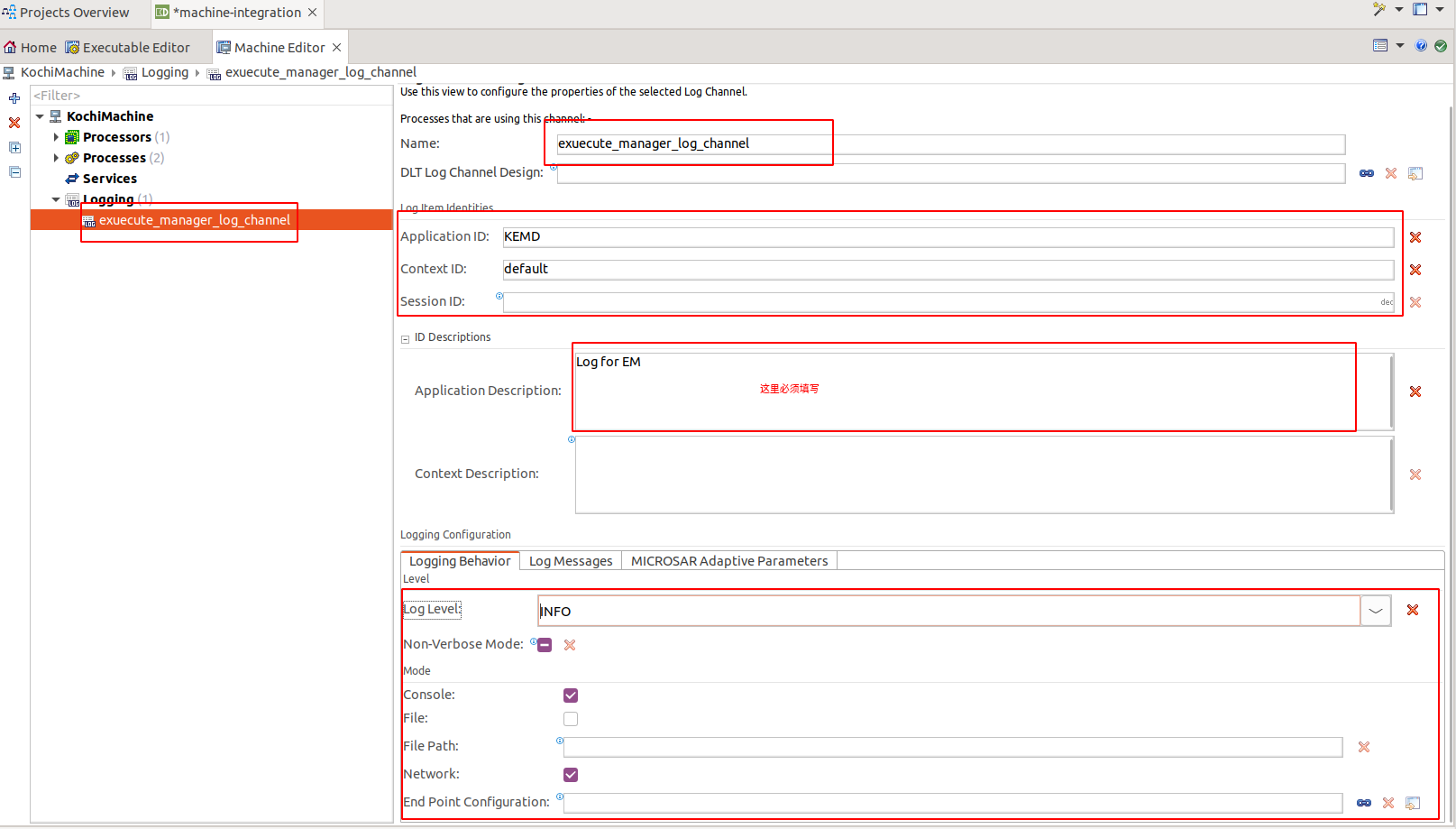

### 为Execut Manager 配置Log Channel

![](/media/202409/2024-09-12_134255_7516820.8449588954534107.png)

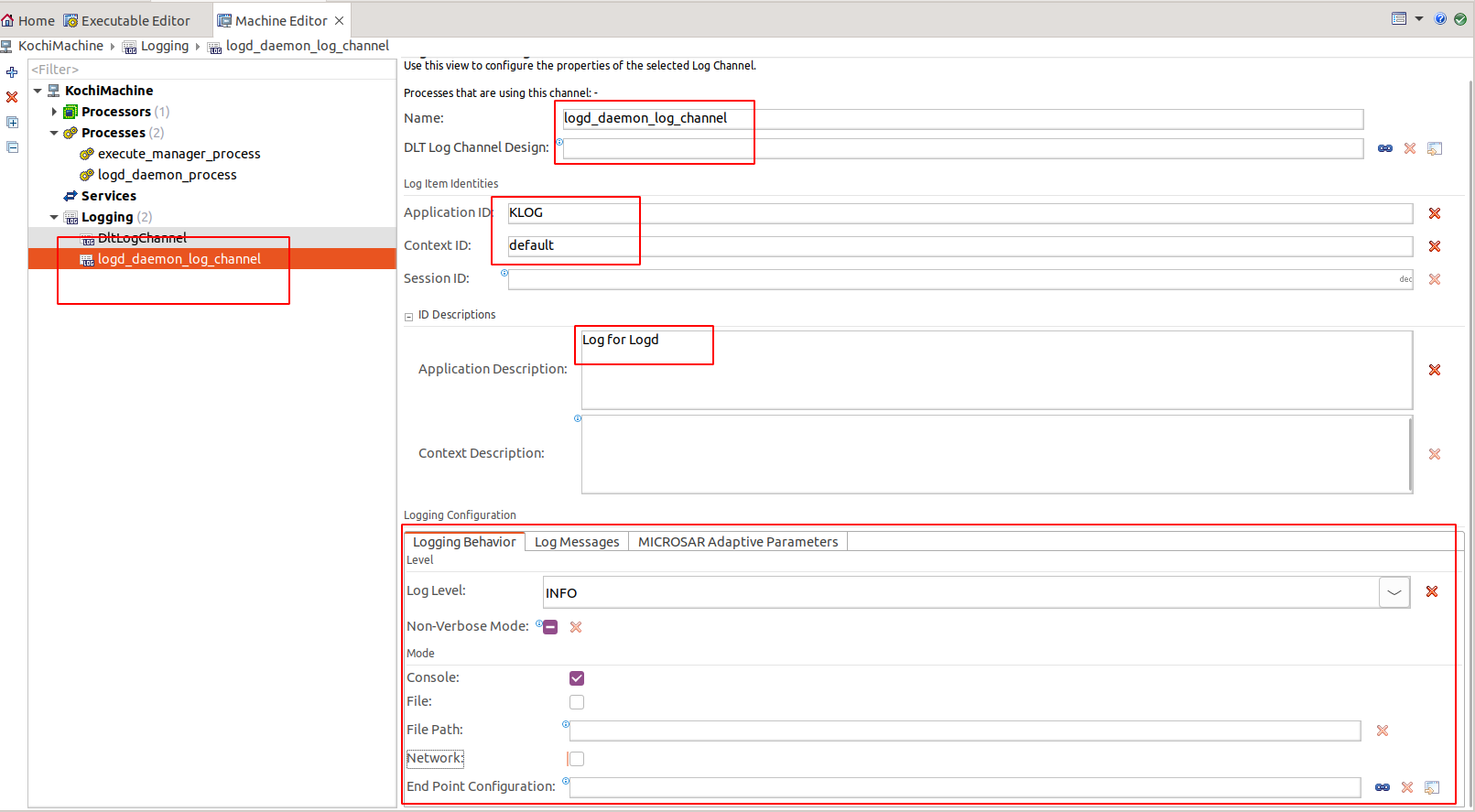

### 为kochi_logd 添加和配置Log Channel
添加方式跟EM log Channel一样的，点个`+`号即可，这里不再贴图
配置：

![](/media/202409/2024-09-12_134739_0604610.2041231339916233.png)

### Log Channel 关联到Process

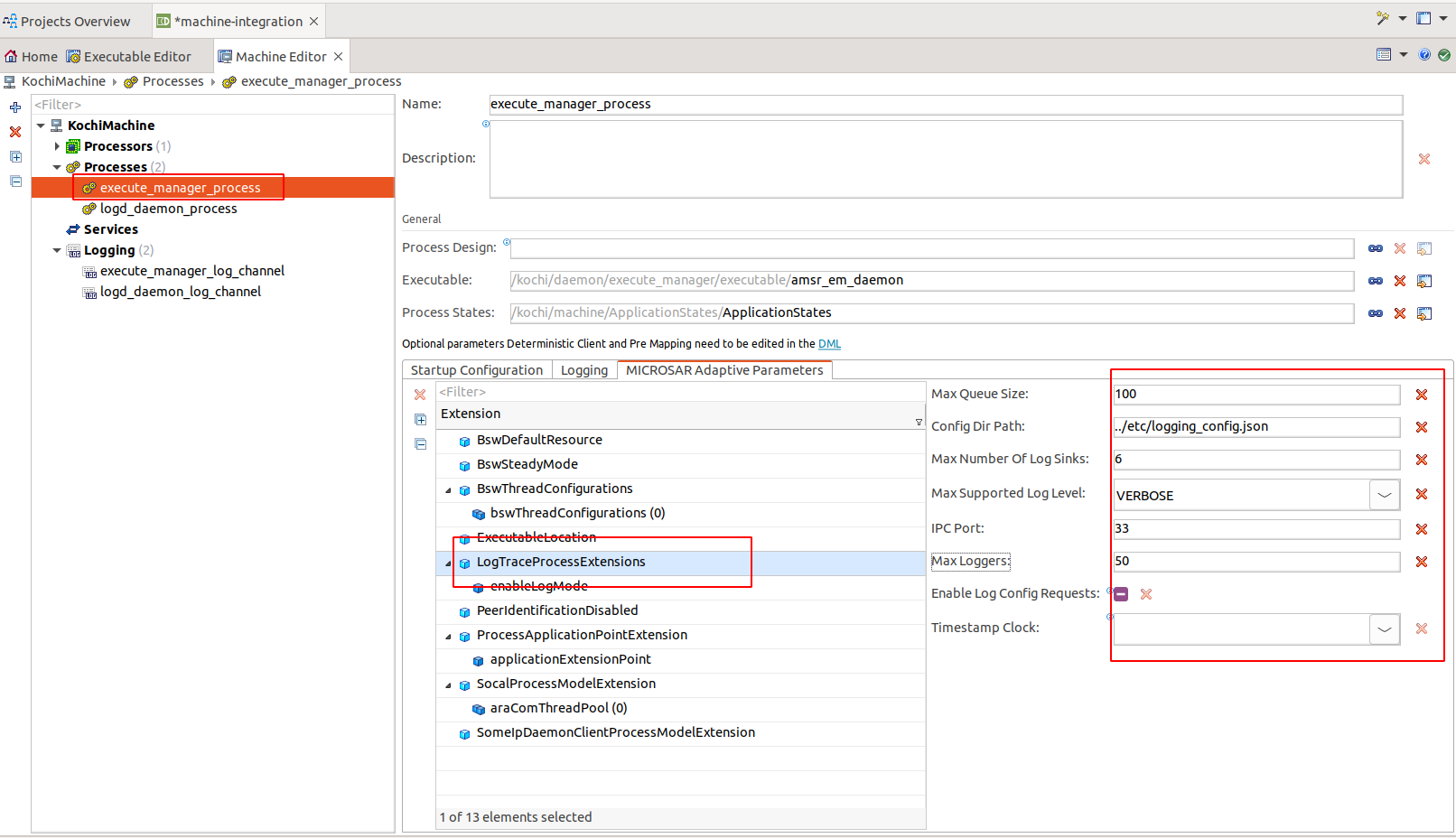

Execution Manager
![](/media/202409/2024-09-12_135546_0737870.22361138643295286.png)

![](/media/202409/2024-09-12_135720_0589150.6195394639800881.png)

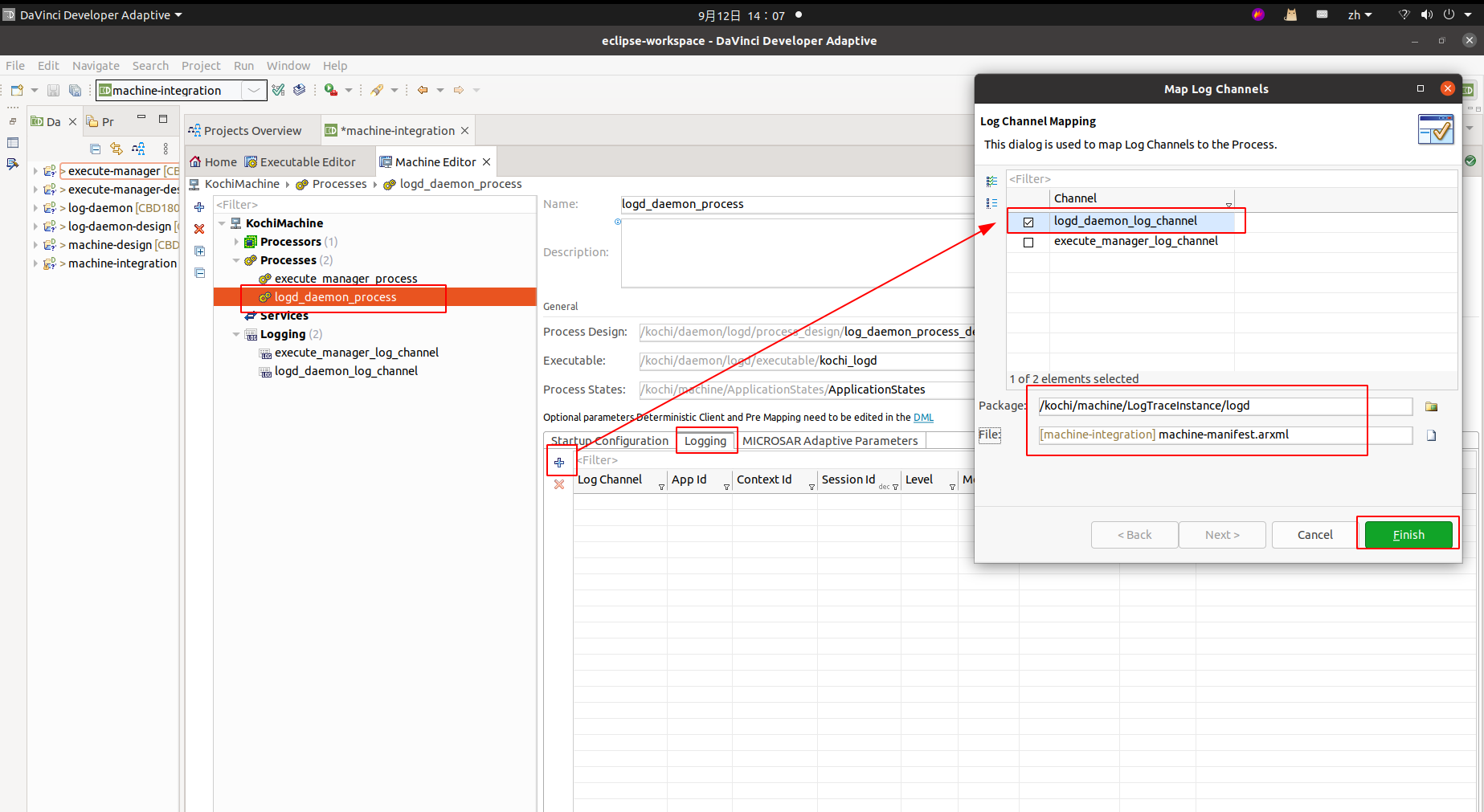

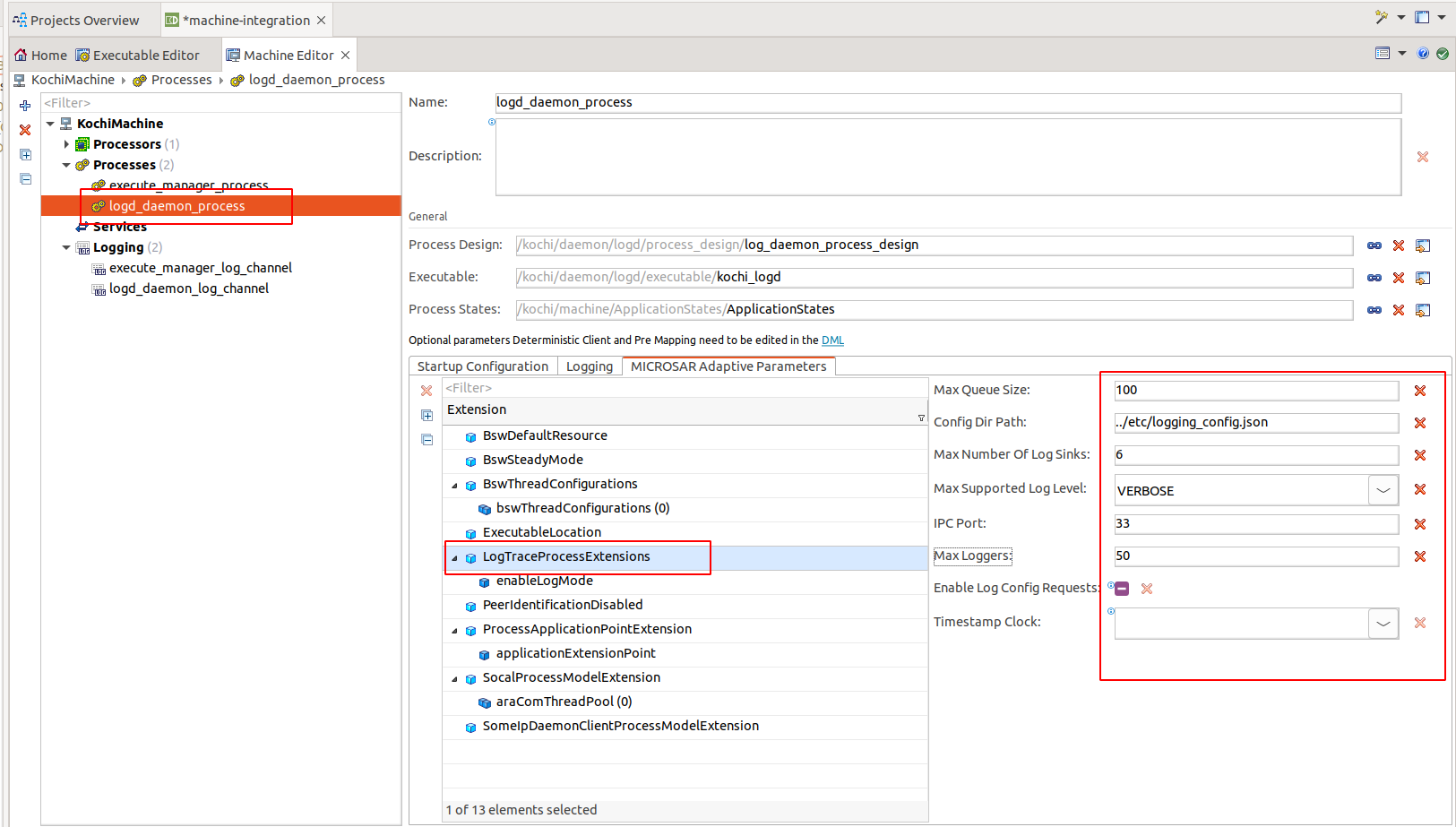

Logd

![](/media/202409/2024-09-12_140813_0737830.5765278881518543.png)

![](/media/202409/2024-09-12_140929_0690930.44073882980865187.png)

## 源码

[【附件】ccu.zip](/media/attachment/2024/09/ccu.zip)
