第四章 State Manager

## 前言
经过前三章，我们的基本框架已经实现，接下来就是添砖加瓦了。

## 创建目录
state-manager和state-manager-design文件夹
```shell
sam@sam-pn64:/diskA/CBD1800182_D107/kochi-app/ccu$ tree model -L 1
model
├── execution-manager
├── execution-manager-design
├── log-daemon
├── log-daemon-design
├── machine-design
├── machine-integration
├── state-manager							#新增
└── state-manager-design 					#新增
```

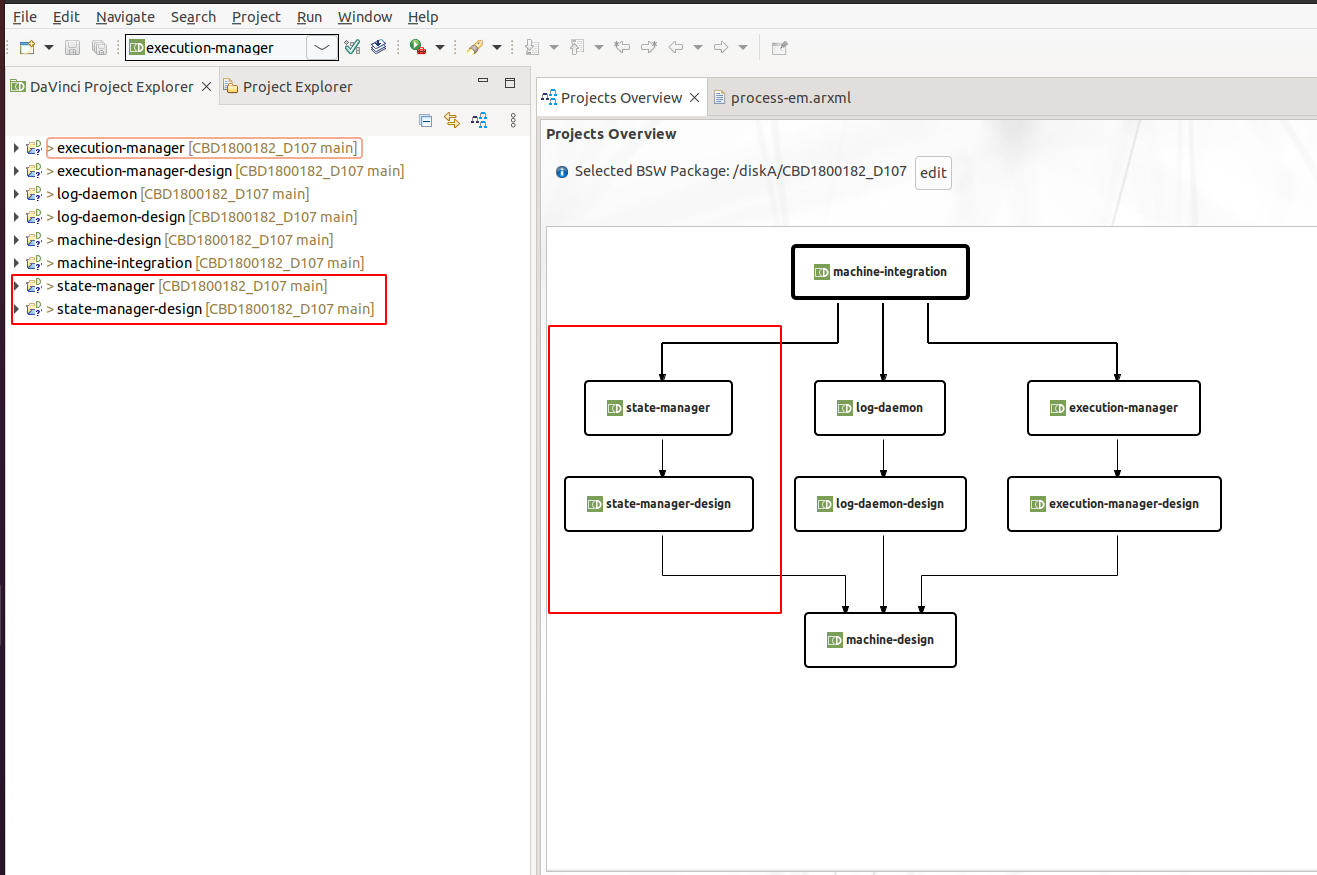

## 创建state-manager和state-manager-design工程并配置关联关系

![](/media/202409/2024-09-18_152758_5320160.38181216728528.png)

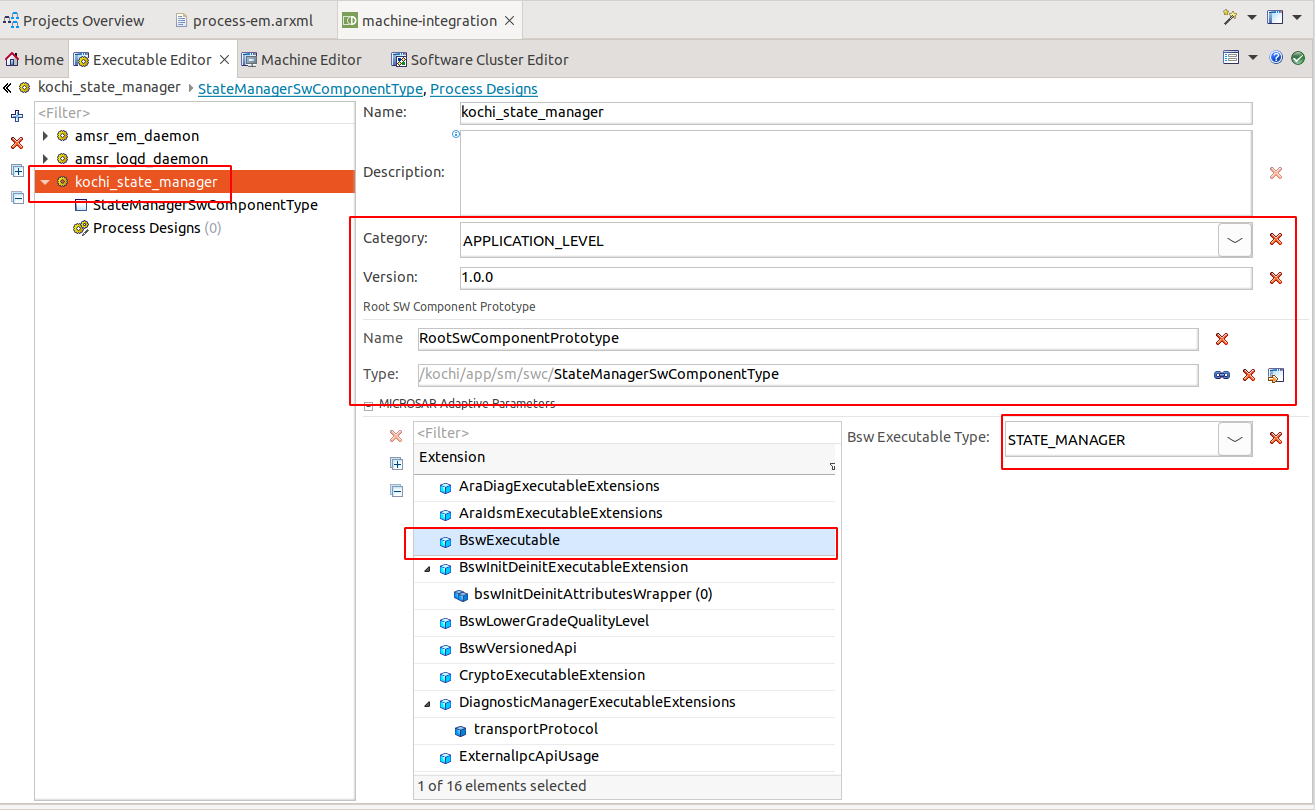

## 创建Executable

注意BswExecutable中的Type，选择STATE_MANAGER

![](/media/202409/2024-09-18_155436_6244780.6718476569147632.png)

## 创建Process

![](/media/202409/2024-09-18_155736_9192230.984437337827497.png)

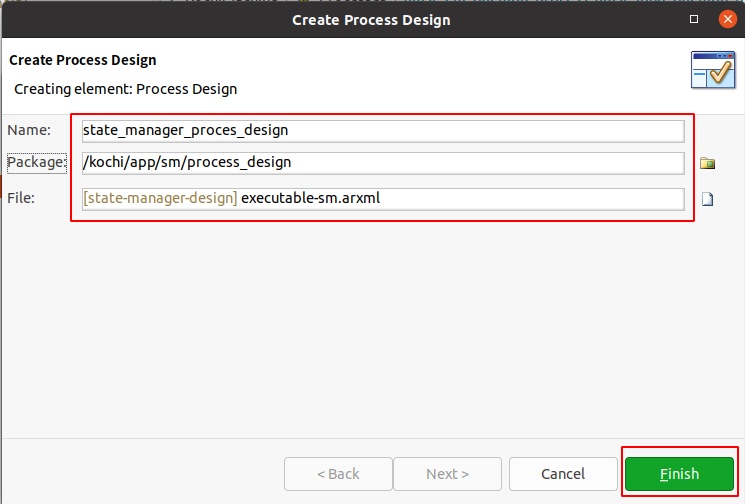

## 创建ProcessDesgin

![](/media/202409/2024-09-18_155903_5810780.15143291447035634.png)

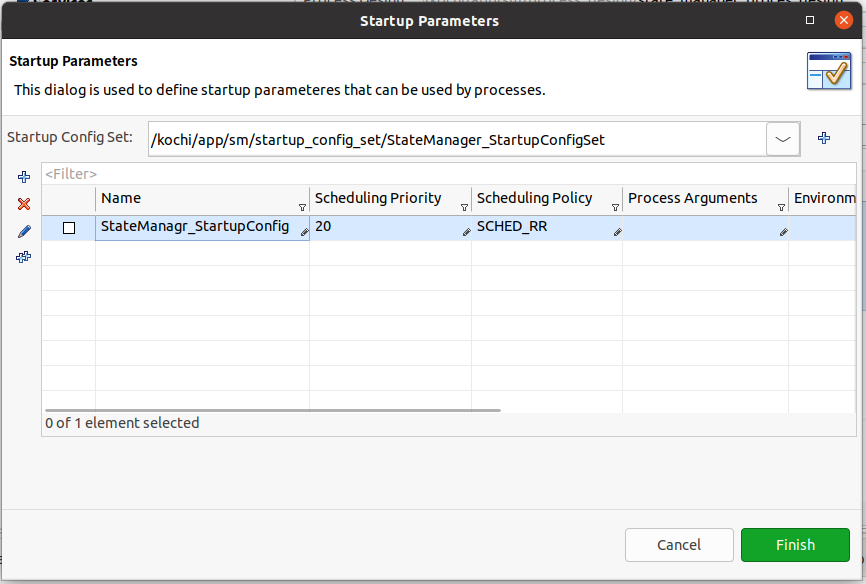

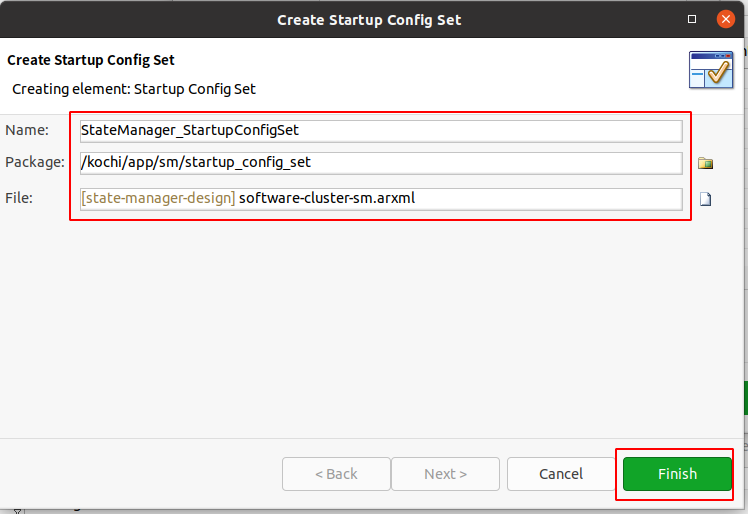

## 创建StartupConfig

![](/media/202409/2024-09-18_160130_4367930.6209136304543859.png)

![](/media/202409/2024-09-18_160221_4823400.48284827886141735.png)

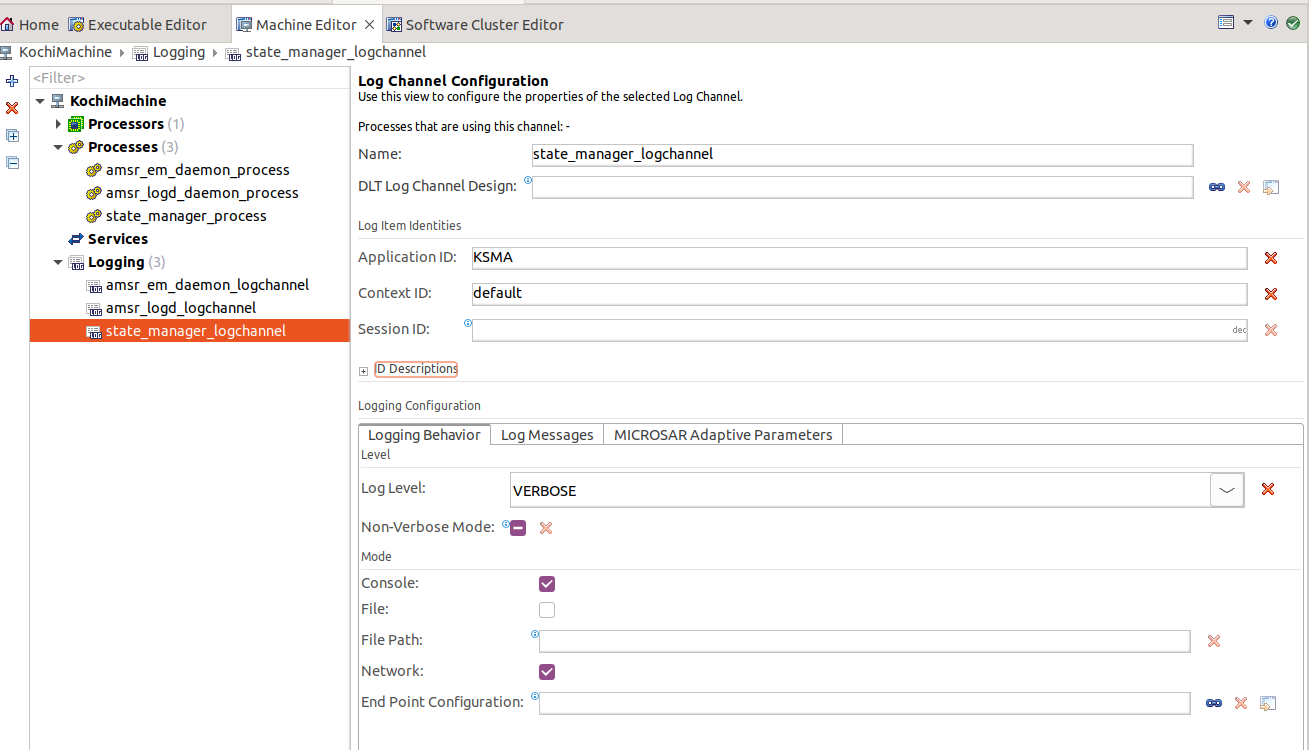

## 创建Log Channel

![](/media/202409/2024-09-18_160423_0710930.21727161922795712.png)

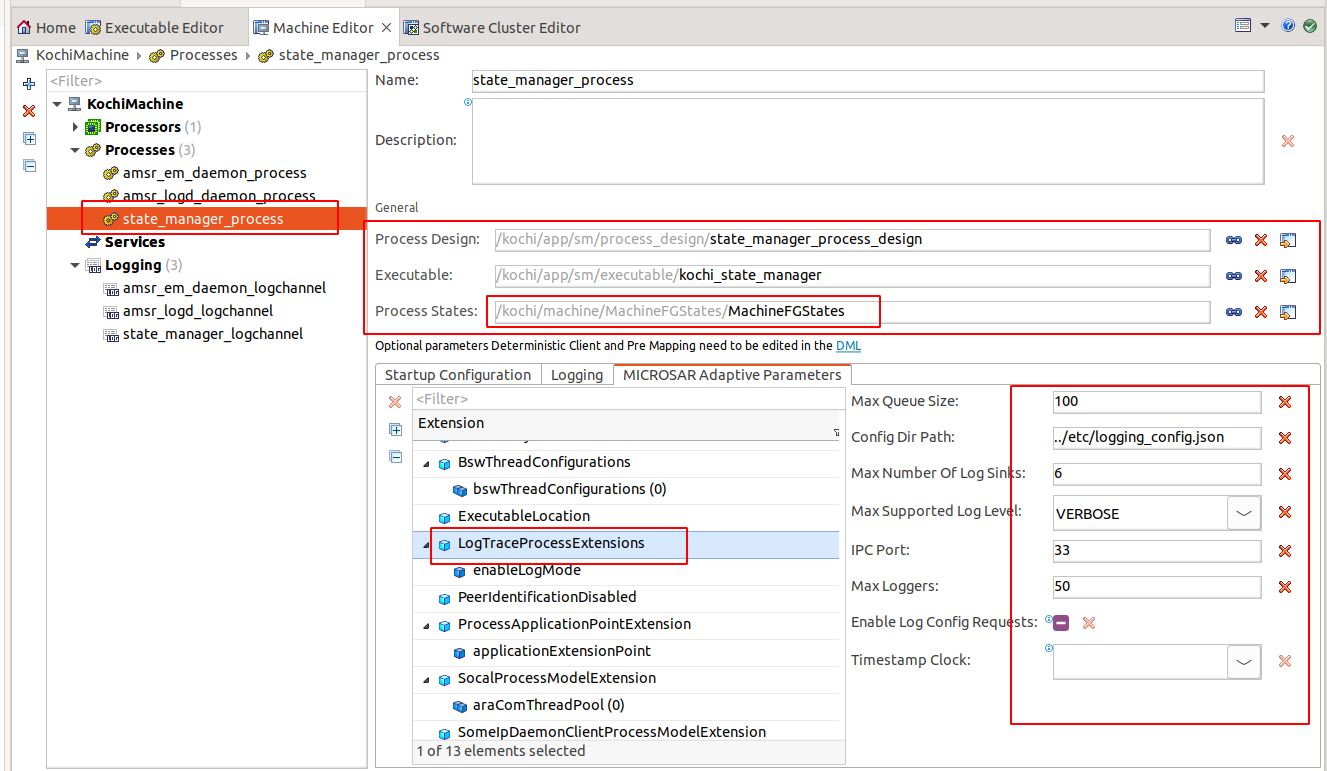

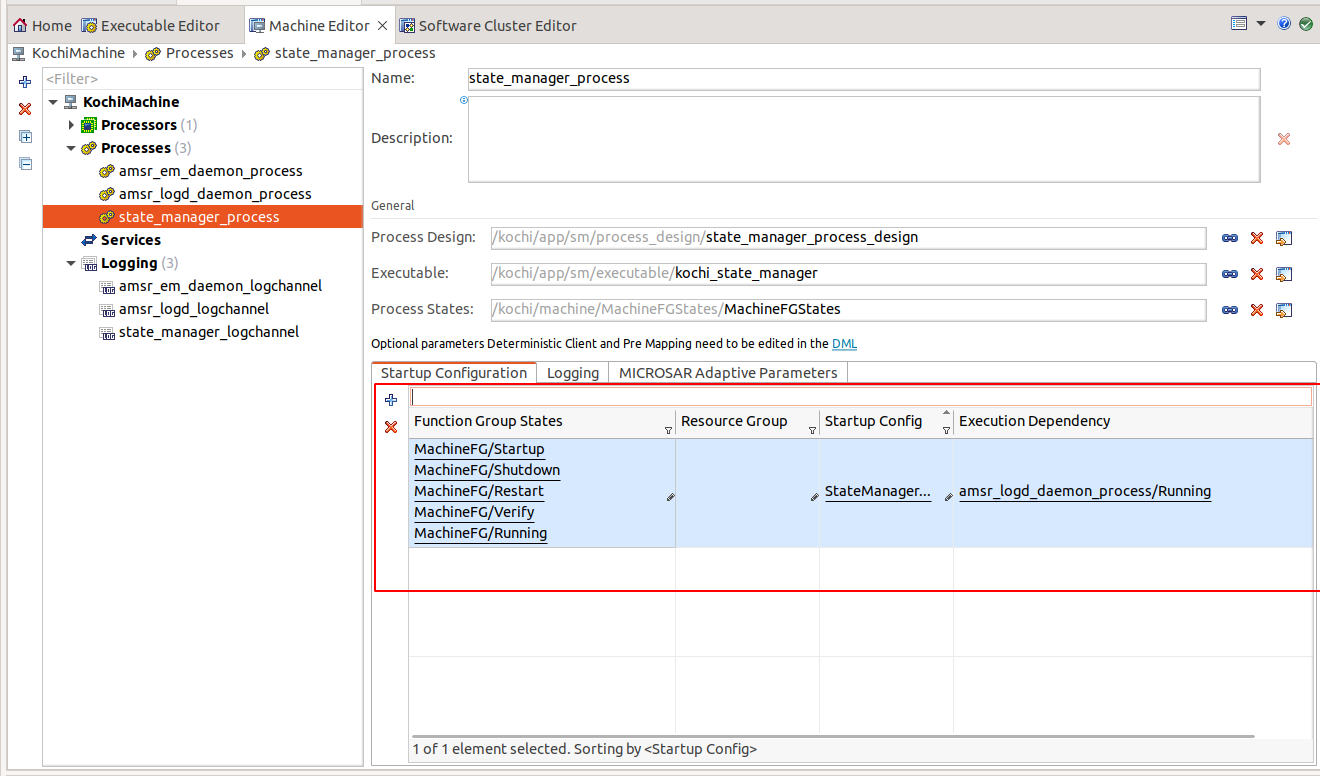

## 配置Process

![](/media/202409/2024-09-18_162631_3802140.4609408070367941.png)

![](/media/202409/2024-09-18_162651_2701200.6772143603777664.png)

![](/media/202409/2024-09-18_162705_6650440.40930893434285043.png)

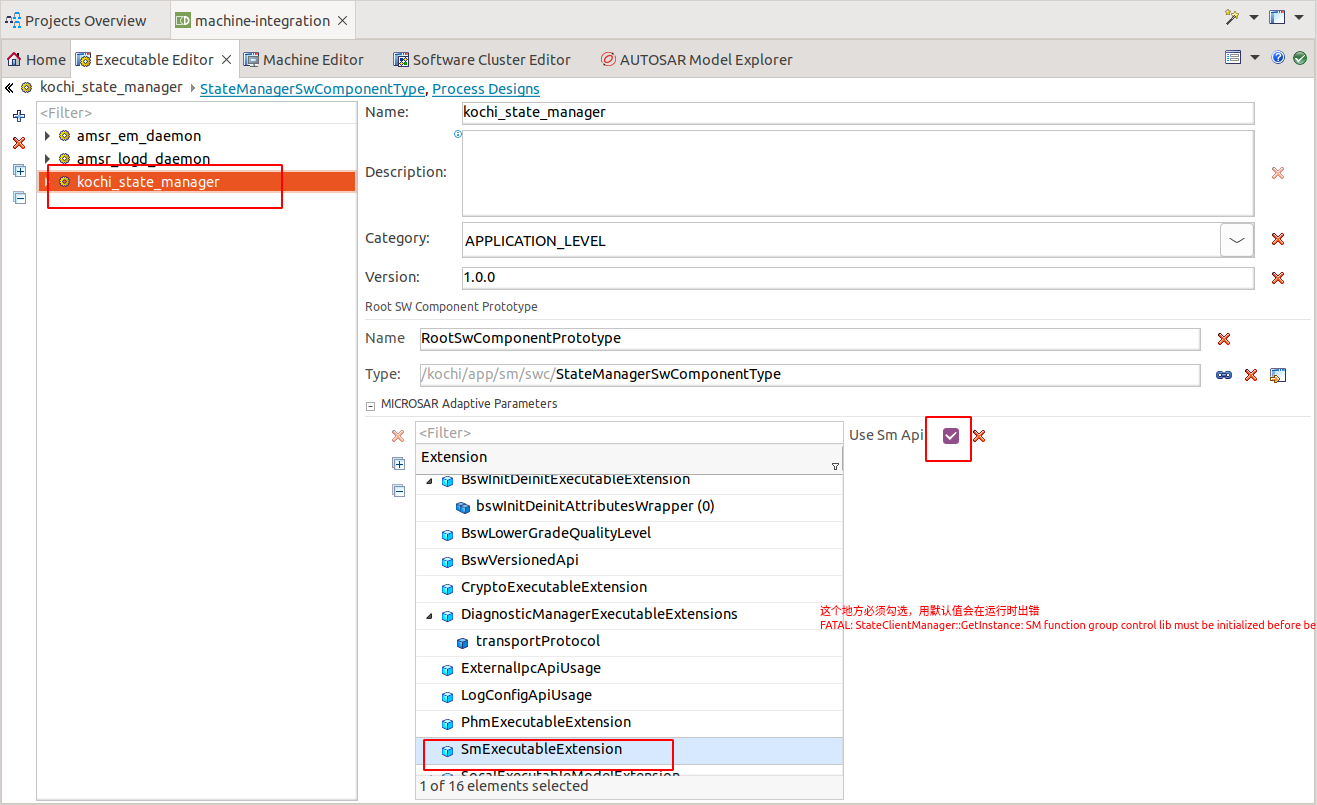

## 配置Executable

![](/media/202409/2024-09-18_163329_5775930.15836849837359823.png)

## 源码

[【附件】ccu.zip](/media/attachment/2024/09/ccu_COoEOUQ.zip)
